Standard AODD pumps aren’t always suited to high-viscosity coatings, paints, and inks. TeryPro Coat is our newest addition to the range — a 1/2″ aluminium diaphragm pump specifically configured for coatings and ink transfer, giving manufacturers a reliable, low-shear solution without switching pump families.
| 1/2" TeryPro Coating | |||
|---|---|---|---|

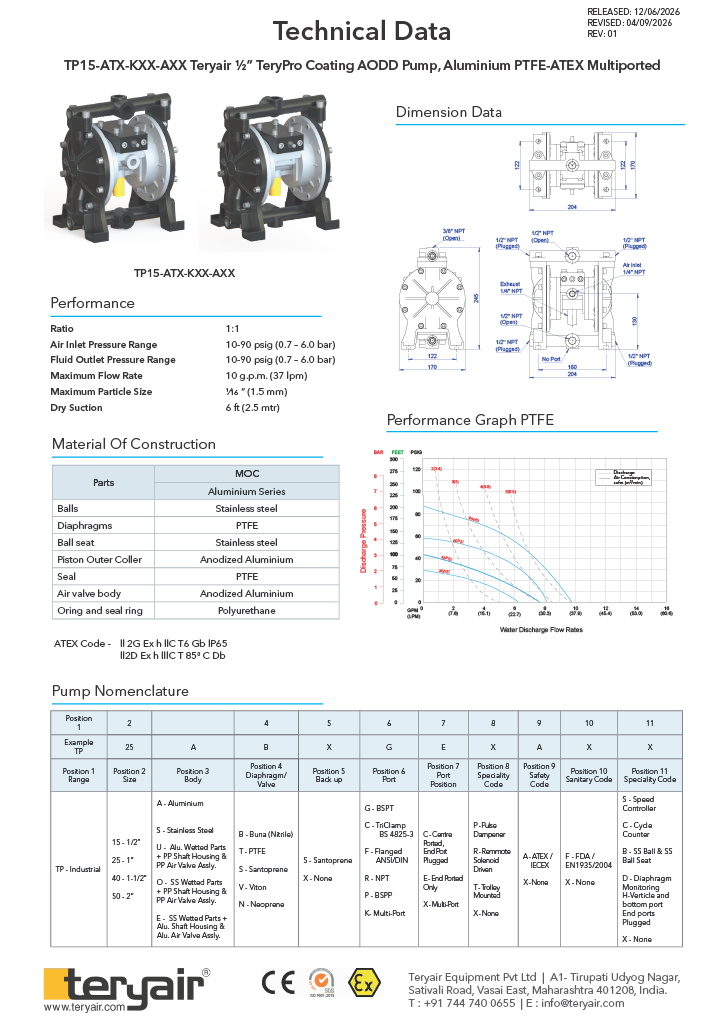

| Brief Specifications ( for full specs, download Technical Data Sheet) | |||
| Ratio | 1:1 | ||
| Air Inlet Pressure Range | 10 - 90 | psig | (0.7 - 6.0 bar) |
| Fluid Outlet Pressure Range | 10 - 90 | psig | (0.7 - 6.0 bar) |
| Maximum Flow Rate | 10 | gpm | (37 lpm) |
| Maximum Particle Size | 1/16 " | (1.5 mm) | |
| Dry Suction | 6 | ft | (2.5 mtr) |
