Teryair Air Motors: Reliable, Versatile, and Built for Extreme Conditions
Teryair Air Motors are stall-proof, self-cooling, high power-to-weight ratio, ATEX explosion-proof, and reversible-making them the preferred choice for a wide range of applications. These versatile workhorses excel in diverse environments where their unique features offer significant advantages over electric or hydraulic options. These compressed air motors are ideal for mixing, lifting, and pulling tasks in explosive zones. The speed and torque can be easily adjusted by modulating the input air pressure and air volume, providing flexibility to meet various operational needs. These air motors can be loaded to stall points without sustaining damage, allowing them to handle variable loads with ease. Additionally, they are designed to operate safely in hazardous environments where electrical motors might pose risks. A key benefit of Teryair air motors is their compact size compared to electric motors. We also offer lubrication-free versions, suitable for hygienic applications where cleanliness and corrosion resistance are essential. Apart from the standard rugged SG Iron versions, we also offer light weight versions with aluminum endplates and Stainless Steel versions for hygienic applications.

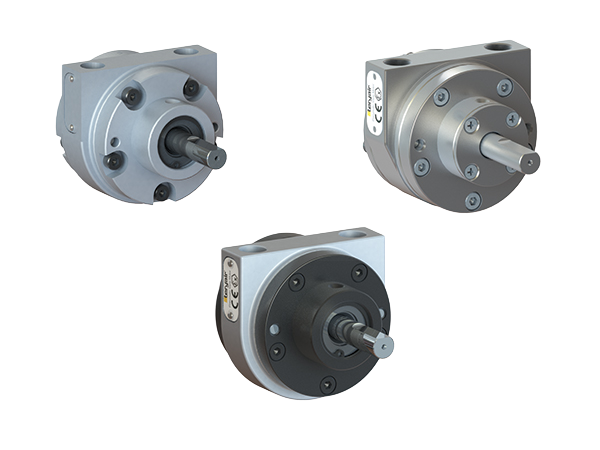

Max Power : 0.33 KW, 0.45HP
Speed at max power : 7600 rpm
Weight (SGI) : 1.0kgs, 2.2lbs
Weight (ALU) : 0.8kgs, 1.7lbs
Mounting: Hub / Foot / Face / Nema /IEC
Threading : NTP/ BSPP/ BSPT
Max Power : 0.33 KW, 0.45HP
Speed at max power : 10000 rpm
Weight (SGI) : 1.0kgs, 2.2lbs
Weight (ALU) : 0.8kgs, 1.7lbs
Mounting: Hub / Foot / Face / Nema /IEC
Threading : NTP/ BSPP/ BSPT
Max Power : 0.33 KW, 0.45HP
Speed at max power : 3000 rpm
Weight (SGI) : 3.7kgs, 8.1lbs
Weight (ALU) : 2.3kgs, 5.0lbs
Mounting: Hub / Foot / Face / Nema /IEC
Threading : NTP/ BSPP/ BSPT

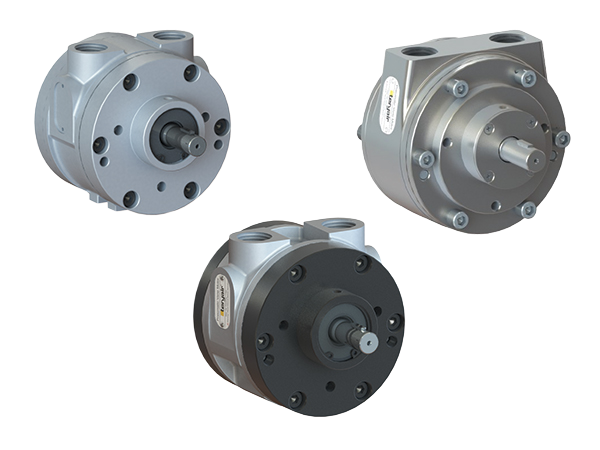

Max Power : 1.3 KW, 1.70HP
Speed at max power : 3000 rpm
Weight (SGI) : 4.0kgs, 8.8lbs
Weight (ALU) : 3.1kgs, 6.8lbs
Mounting: Hub / Foot / Face / Nema /IEC
Threading : NTP/ BSPP/ BSPT

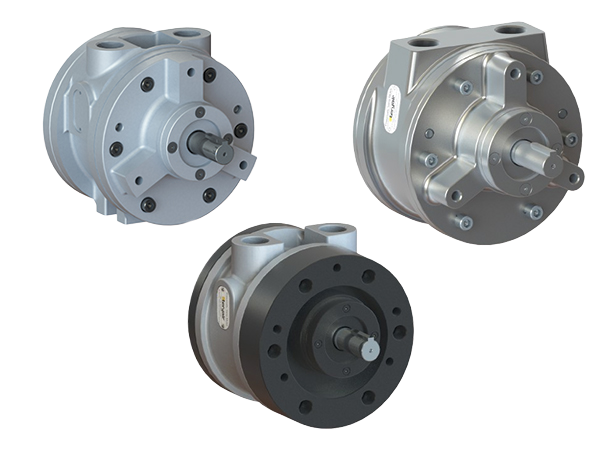

Max Power : 3.00 KW, 4.0HP
Speed at max power : 3000 rpm
Weight (SGI) : 8.6kgs, 19.0lbs
Weight (ALU) : 6.5kgs, 14.3lbs
Mounting: Hub / Foot / Face / Nema /IEC
Threading : NTP/ BSPP/ BSPT

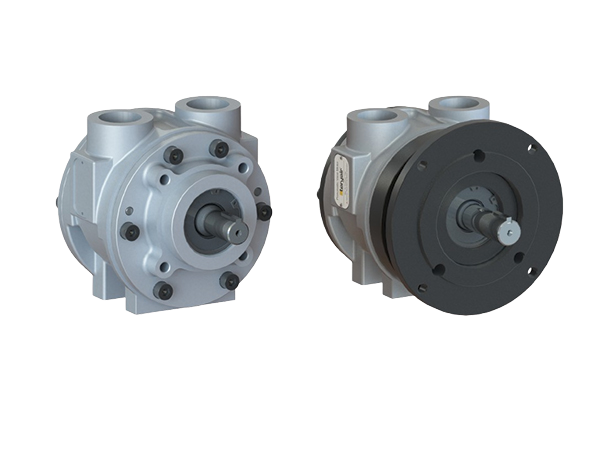

Max Power : 3.90 KW, 5.25HP
Speed at max power : 2500 rpm
Weight (SGI) : 11.4kgs, 25.0lbs
Weight (ALU) : 10.0kgs, 22.0lbs
Mounting: Hub / Foot / Face / Nema /IEC
Threading : NTP/ BSPP/ BSPT
Max Power : 7.10 KW, 9.5HP
Speed at max power : 2000 rpm
Weight : 36.10kgs, 2.6lbs
Mounting: Hub / Foot / Face / Nema /IEC
Threading : NTP/ BSPP/ BSPT
Max Power : 0.25 KW, 0.33HP
Speed at max power : 2000 rpm
Weight : 2.0kgs, 4.40lbs
Mounting: Hub Mount & M4x12mm deep on PCD50mm
Threading : NTP/ BSPP/ BSPT
FAQFrequently Asked Questions
Teryair combines advanced engineering, strict quality standards, and practical industrial knowledge to deliver reliable and efficient pump solutions.
They are widely used for transferring chemicals, slurries, and viscous fluids safely in industrial applications.
An AODD pump is an air-driven pump designed for handling a wide range of fluids, especially in challenging environments.
Yes, we are spark-free and ideal for use in explosive and hazardous conditions.
Industries such as oil & gas, chemical processing, marine, and manufacturing commonly use.
No, they are designed for low maintenance and long operational life.
Yes, they are specifically designed to handle abrasive and corrosive materials efficiently.
The benefits are safer in hazardous environments, lightweight, and resistant to overheating.
Yes, solutions can be tailored based on specific industrial requirements.
You can consult Teryair experts to select the most suitable equipment based on your operational needs.
Precision-Driven AODD Pumps & Pneumatic Solutions By Teryair
In today’s fast-moving industrial landscape, efficiency is no longer optional, it’s essential. At Teryair, we deliver high-performance pneumatic and fluid handling solutions engineered to meet the evolving needs of modern industries. As one of the trusted aodd pump manufacturers, we combine innovation, durability, and precision to help businesses operate with confidence in even the most demanding environments. From fluid transfer to motion control, our solutions are built to perform where it matters most, ensuring reliability, safety, and long-term value. Why choose us? Industries across sectors trust Teryair for dependable performance, advanced engineering, consistent quality, and customer-focused industrial solutions.Designed For Tough Industrial Uses
Compressed air is used by our motors to transform energy into rotational motion without the need for electricity. They are therefore perfect for sectors where performance and safety must coexist.A well-designed pneumatic motor provides constant speed and torque while ensuring smooth operation even under varying loads. Our motors are designed to adapt without sacrificing efficiency, whether they are used for heavy-duty operations or high-speed applications.Why Choose Teryair For Air Motors?
We produce motors that satisfy international industrial standards by fusing cutting-edge engineering with application-driven designs.Principal Benefits- Explosion-proof operation: Perfect for dangerous settings where electrical sparks could be dangerous
- Variable speed control: Simple modification without intricate control mechanisms
- High power-to-weight ratio: small size with strong performance
- Durability under challenging circumstances: Functionality in dust, wetness, and extremely high or low temperatures
- Low maintenance needs: Made to last a long time with little wear
Advanced Vane Motor Technology
Vane motor technology is at the core of Teryair‘s innovation. Because of its smooth, effective, and continuous rotation, the pneumatic vane motor is suitable for a variety of industrial settings.Sliding vanes inside a rotor create chambers that expand and contract, generating motion in a rotary vane air motor. Even in difficult situations, this system guarantees steady torque output and dependable performance.Furthermore, the air vane motor design provides quick reversibility and instant start-stop capabilities, providing more control and operation flexibility.Adaptable Uses In Various Industries
Because of their versatility and reliable performance, our motors are trusted in several industries in European countries such as Germany, Italy, Denmark, and the Netherlands.- The petrochemical and oil and gas sectors
- Offshore and marine applications
- Construction and mining
- Packaging and processing of food
- Chemical processing and pharmaceuticals
- Manufacturing and automobiles
Designed For Control And Efficiency
Teryair‘s design philosophy is centered on efficiency. Each rotary vane air motor is designed to maximize efficiency while consuming the least amount of energy.Operators can adjust torque and speed without complicated electronics by using basic airflow regulation. Because of this, the motors are not only effective but also simple to use and maintain.By guaranteeing smooth rotation, less vibration, and constant output throughout a range of operating situations, pneumatic vane motor technology significantly improves performance.Industrial Growth Is Driven By Reliability
Reliability is essential in fast-paced industrial settings. We guarantee that each air vane motor is constructed with high-quality materials and precise parts to endure prolonged use.These motors are a reliable option for enterprises in European countries like Germany, Italy, Denmark, and the Netherlands, because they can function in harsh conditions like high humidity, dusty settings, and explosive atmospheres.A Reliable Partner In The European Countries
By providing solutions that meet changing industry needs, we have established a strong foothold in European countries Germany, Italy, Denmark, and the Netherlands.- A large variety of motor configurations
- A robust network of distribution and support
- Demonstrated success in several industries
- A dedication to excellence and creativity
Designed To Provide Long-Term Industrial Performance
We are committed to developing long-lasting solutions in addition to providing power. Every motor is built with durability in mind, guaranteeing steady output even under the most demanding industrial circumstances. Our products are designed to minimize wear and maximize operational life in high-load operating and continuous runtime settings.
For businesses competing in cutthroat marketplaces throughout European countries like Germany, Italy, Denmark, and the Netherlands, this long-term dependability translates into decreased downtime, cheaper maintenance costs, and increased productivity.
Easy Integration Between Apps
One of the best things about our solutions is that they can be changed to fit your needs. These motors are made to work with systems that are already in place without needing any complicated changes. They are easy to install and use because they are flexible and can be used in both automated production lines and stand-alone operations.
They are easy to handle because they are small and light, and they work well in a variety of situations because they are built to last.
Better Output With Precision Control
In many industrial processes, it is important to have precise control over speed and torque. We meet this need by making motors that respond right away to changes in air pressure, making it easy for operators to fine-tune performance.
This level of control not only makes operations run more smoothly, but it also makes sure that sensitive applications that need to be accurate are handled better. The ability to start, stop, and reverse instantly makes these motors even more useful for changing industrial processes.
Made For Environments Where Safety Is Very Important
Safety is still the most important thing for businesses that work with dangerous or unstable materials. Because we at Teryair Motors are powered by air, we are naturally safe. This means that there is no risk of electrical sparks or overheating.
Because of this, they are perfect for industries like oil and gas, chemicals, and marine applications, where safety is very important, and reliability is not up for debate. Their ability to work in wet, dusty, or very hot conditions makes them even more useful in a variety of industrial settings.
